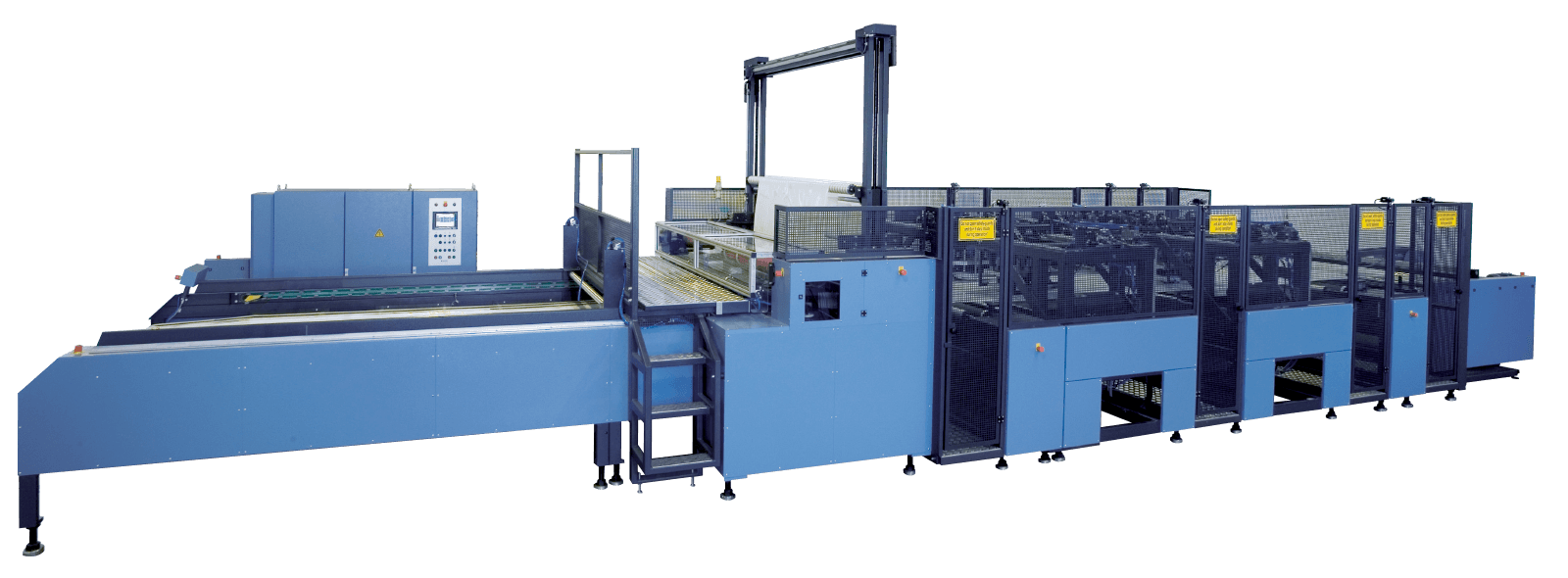

AB/BB Heavy Duty Bag Making Machine

AB/BB Powerful Heavy Duty Bag Making Machine Gunter

Maximum Flexibility Through Modular Design

The AB/BB is our flagship heavy duty bag making machine, engineered specifically for the production of all liner types for Flexible Intermediate Bulk Containers (FIBC). With just one machine, you can produce liners for 1-loop, 2-loop, and 4-loop FIBCs, offering unparalleled versatility for your manufacturing operations.

Technical Specifications

• Working Width: 1600, 2000, 2400, 3000, 3600 mm
• Bag Length: 1000 – 3400 mm (extendable to 6000 mm)
• Film Thickness (Rewound Bags): 2 x 0.030 – 4 x 0.250 mm
• Film Thickness (Single Bags): 2 x 0.050 – 4 x 0.250 mm
• Length Control: up to 1000 m
• Performance: max. 20 – 25 cycles/min.

Key Features & Benefits

• Universal Adaptability: Our modular design allows for easy extensions and upgrades as your production needs evolve
• Production Versatility: Capable of producing Y-hoods, 138° liners, and various FIBC liner configurations
• Material Efficiency: Optimized design reduces material waste while maintaining structural integrity
• Long-Term Reliability: Built with robust components for continuous industrial operation
• Improved Shrinkage Performance: Especially beneficial for Y-hood pallet shrink covers
• High-Speed Production: Maintains consistent quality even at maximum production speeds

Compatible With Multiple Unwind Systems

The AB/BB can be paired with various unwind systems to suit your specific production requirements:

• Shaftless unwind AZ-A with dancer controlled center drive
• Support roller unwind system AZ-T for single or multi-track production
• Frequency-controlled surface unwind system AZ-O
• Dual-track unwind system AZ-O-2 with optional reel lift

Ideal Applications

Perfect for manufacturing:

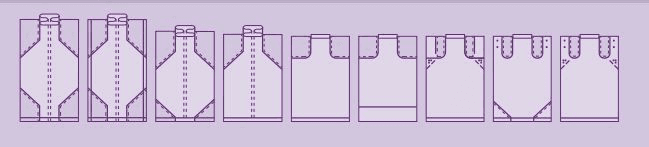

• Y-hoods and 138° liners for 4-loop FIBCs
• Heavy duty industrial bags
• Pallet covers
• Laquering hoods
• Square bottom bags
• Various liner types (U-liner, bottle-bag liner)

Technical specifications subject to modification. Custom lengths and film thicknesses available upon request.
